LDAP

LDAP is used to connect to enterprise identity sources.

Entry

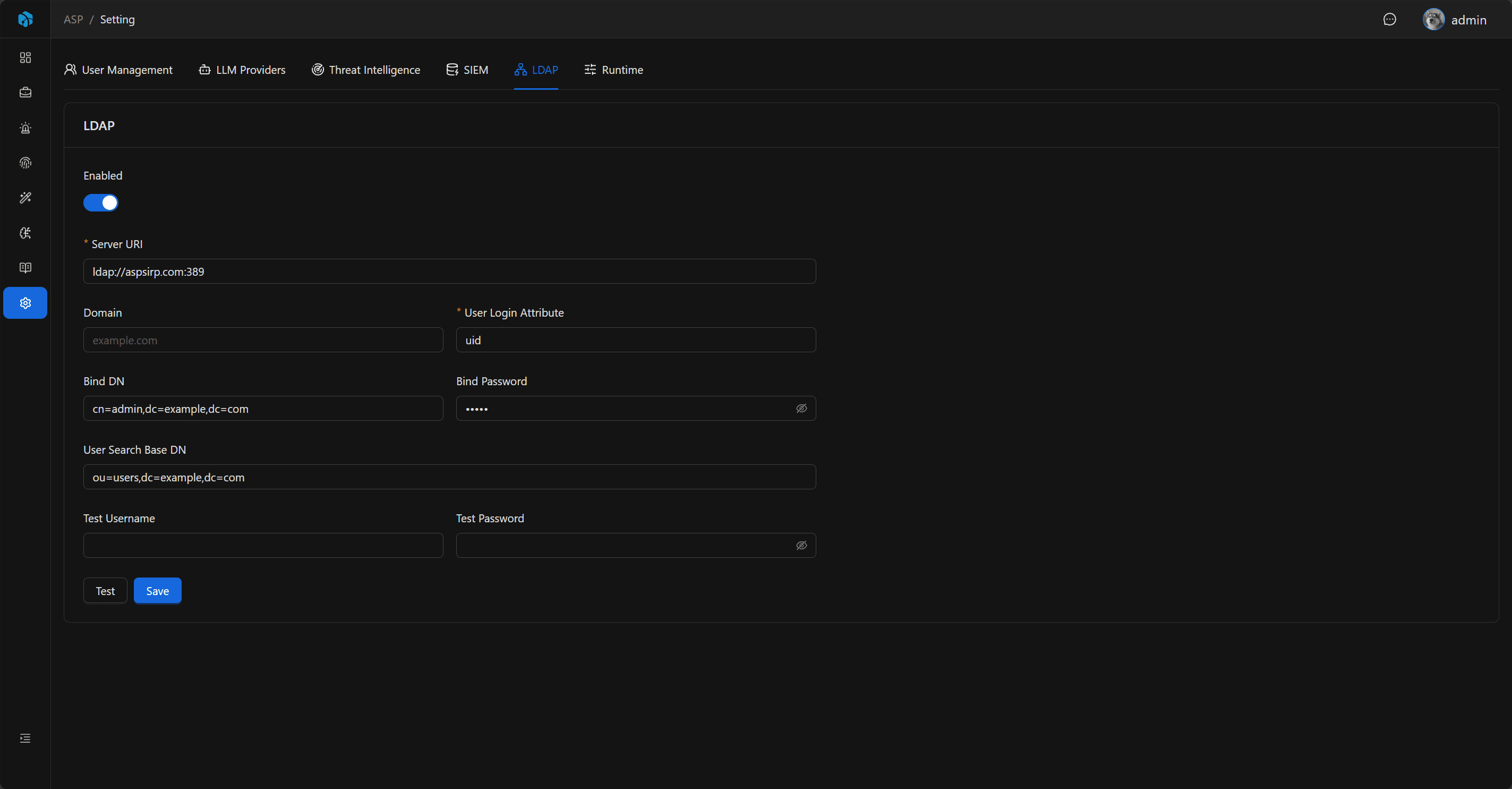

LDAP settings are located in the LDAP Tab of System Settings.

Configuration Items

Field	Description
Enabled	Whether to enable LDAP login.
Server URI	LDAP server address, must start with ldap:// or ldaps://.
Domain	Used in direct bind mode to build username@domain.
Bind DN	Optional service account DN for searching users first.
Bind Password	Password for Bind DN.
User Search Base DN	Starting DN for user search.
User Login Attr	Login name matching field, default uid.

Common Windows AD Configuration

Windows Active Directory typically uses search bind mode:

Field	Example
Server URI	ldaps://ad.example.com:636 or ldap://ad.example.com:389
Domain	example.com
Bind DN	svc_asp@example.com or CN=svc-asp,OU=Service Accounts,DC=example,DC=com
Bind Password	Service account password
User Search Base DN	DC=example,DC=com or OU=Users,DC=example,DC=com
User Login Attr	sAMAccountName

If you want users to log in with UPN, set User Login Attr to userPrincipalName and require users to enter the full UPN on the login page, such as alice@example.com.

Confirm Configuration on a Domain-Joined Windows Host

If the current Windows host has already joined the domain, first use local PowerShell to confirm the domain name, domain controller, and port connectivity:

$domain = $env:USERDNSDOMAIN
$domain
nltest /dsgetdc:$domain

The DC or Address value in nltest output can be used to identify the domain controller. Then check LDAP / LDAPS ports:

Test-NetConnection <domain-controller-host> -Port 636
Test-NetConnection <domain-controller-host> -Port 389

If port 636 is available, prefer ldaps://<domain-controller-host>:636; otherwise use ldap://<domain-controller-host>:389.

ASP field	How to confirm
Server URI	Use nltest /dsgetdc:$domain to find the domain controller, then choose ldaps://<host>:636 or ldap://<host>:389 based on the port.
Domain	Usually use $env:USERDNSDOMAIN, for example example.com.
Bind DN	Prefer a dedicated service account UPN such as svc_asp@example.com; a full DN also works.
Bind Password	Service account password. It cannot be read from local commands and must be provided or reset by an AD administrator.
User Search Base DN	Usually derived from the domain name, for example example.com becomes DC=example,DC=com; you can narrow it to the OU where users actually live.
User Login Attr	Windows AD usually uses sAMAccountName; use userPrincipalName if users should enter full UPNs.

If the RSAT Active Directory module is installed, you can further confirm DNs:

Import-Module ActiveDirectory
Get-ADDomain | Select-Object DNSRoot, DistinguishedName, PDCEmulator
Get-ADUser svc_asp -Properties UserPrincipalName, DistinguishedName |
  Select-Object SamAccountName, UserPrincipalName, DistinguishedName

Authentication Mode

When User Search Base DN is configured, the backend will first use Bind DN / Bind Password for service bind, then search for user DN by User Login Attr=<username>, and finally use the user's input password to bind that user DN.

When User Search Base DN is not configured, the backend will directly bind the user: if Domain is configured, use username@domain; otherwise use username directly.

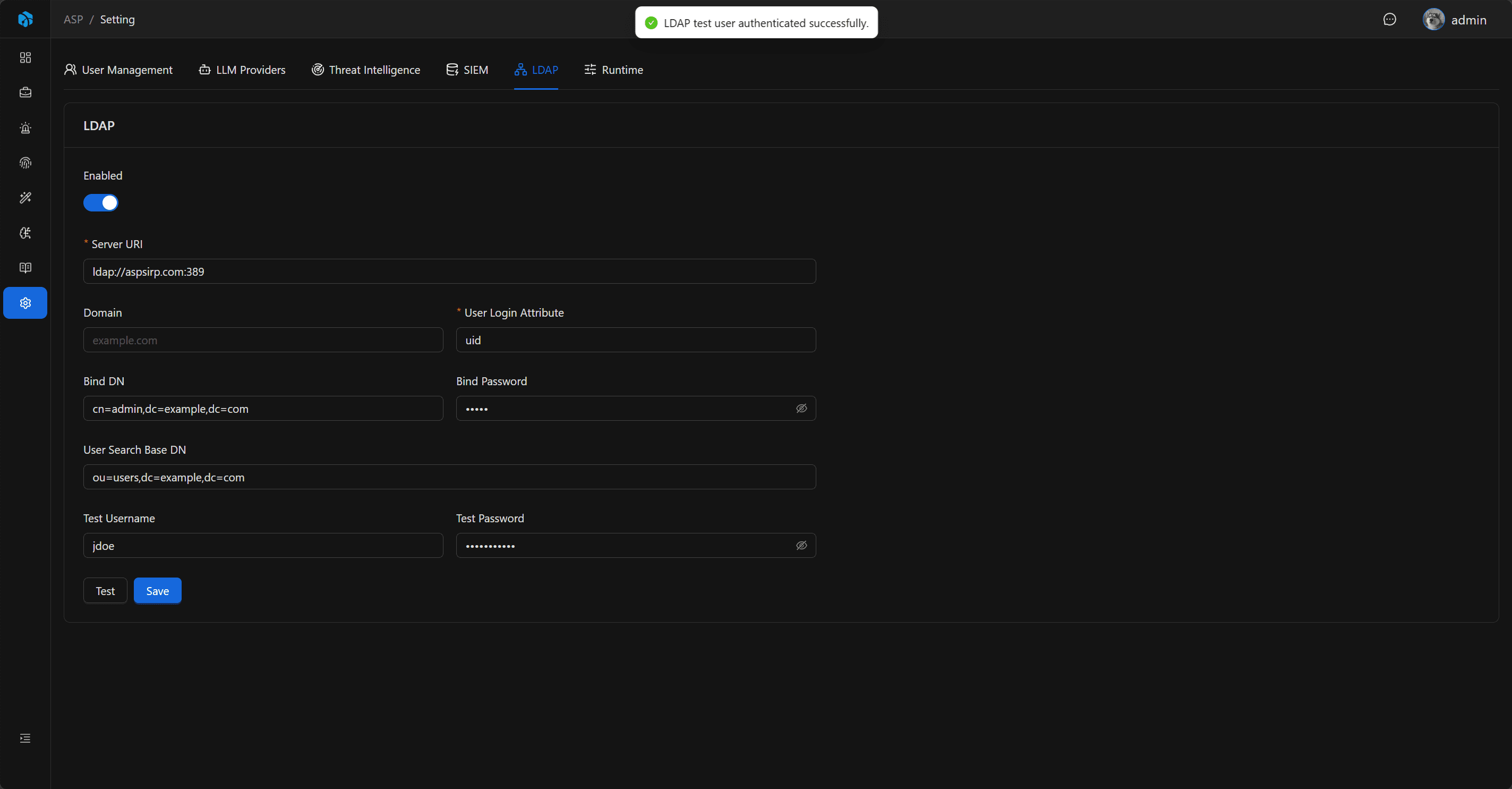

Test Connection

When Test Username / Test Password are not filled in, Test only verifies whether LDAP bind succeeds. When test account is filled in, username and password must be provided together, and the backend will execute a complete user authentication according to current configuration.

Login Flow

1. Admin enables and saves LDAP configuration.
2. Use test function to confirm connection and account query are available.
3. Admin creates ASP user with Authentication Type set to LDAP in user management.

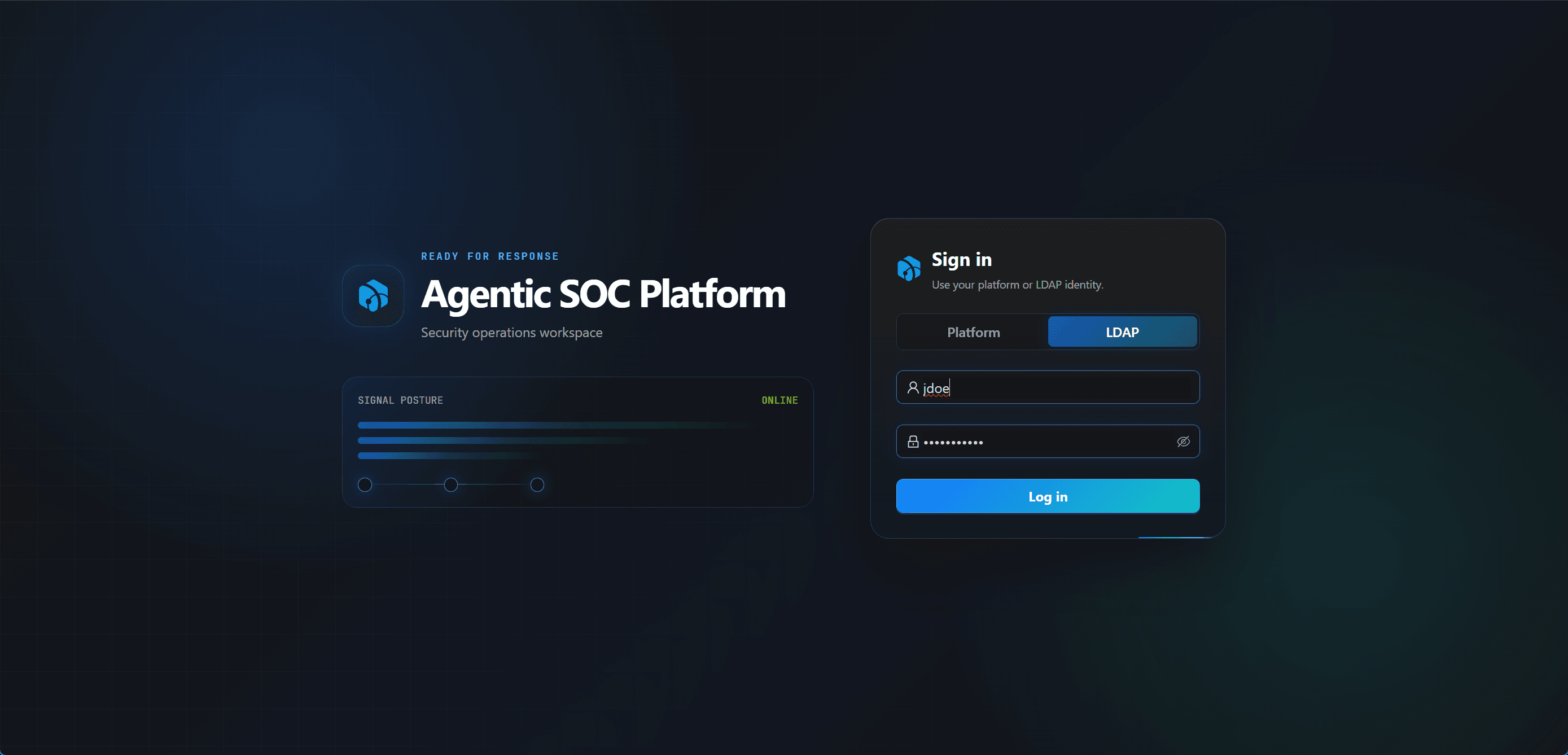

4. User switches to LDAP on login page.
5. Backend confirms ASP user exists, account is enabled, authentication type is LDAP.
6. Backend uses LDAP to verify user credentials and logs in as that ASP user.

LDAP login does not automatically create ASP users, nor does it automatically assign roles. Local Password users cannot log in with LDAP, and LDAP users cannot log in with Platform.

Security and Audit

Bind Password is hidden by default. Saving configuration, testing connection, and revealing Bind Password are all written to Audit Log; password fields in audit records only record whether a value changed or was revealed, not plaintext secrets.

After saving configuration, the backend refreshes the LDAP runtime cache so later logins use the latest settings.

Usage Recommendations

• Prefer ldaps:// in production environments.
• Windows AD typically uses sAMAccountName as User Login Attr.
• Control User Search Base DN to the actual user's OU or domain scope.
• First use Test Username / Test Password to verify real user login before opening to users.
